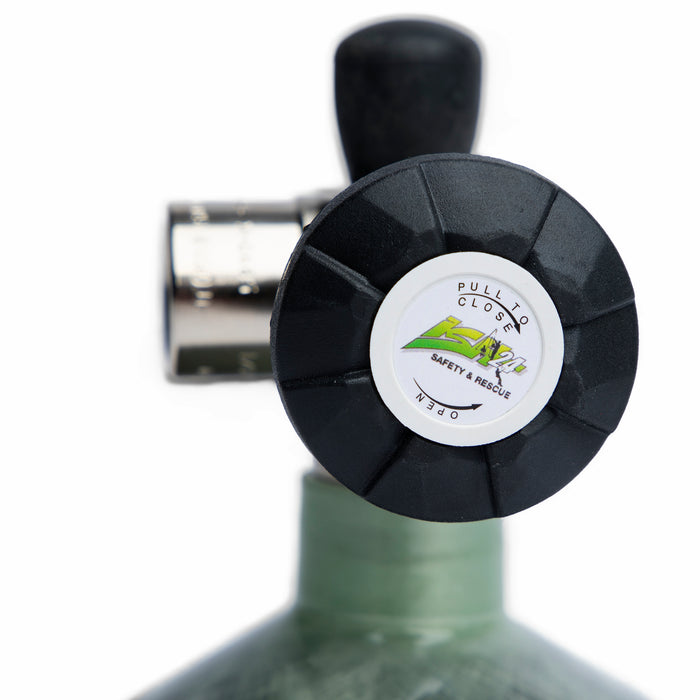

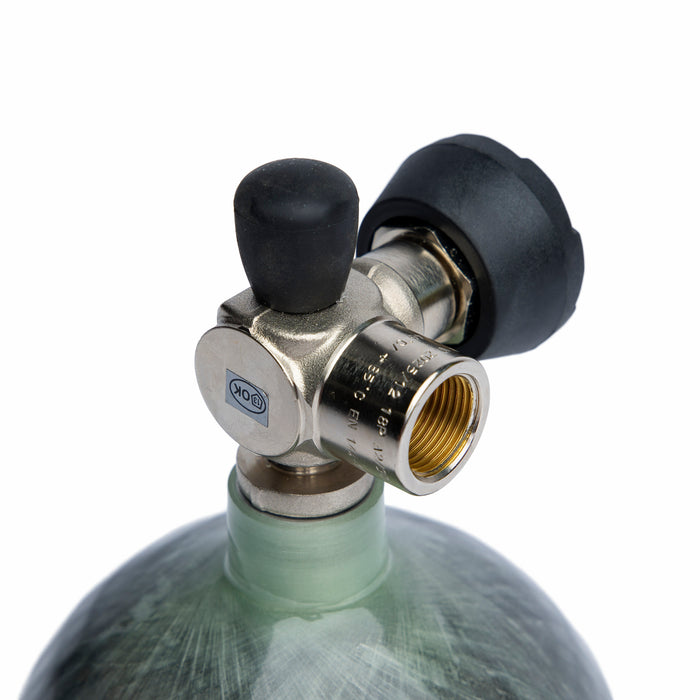

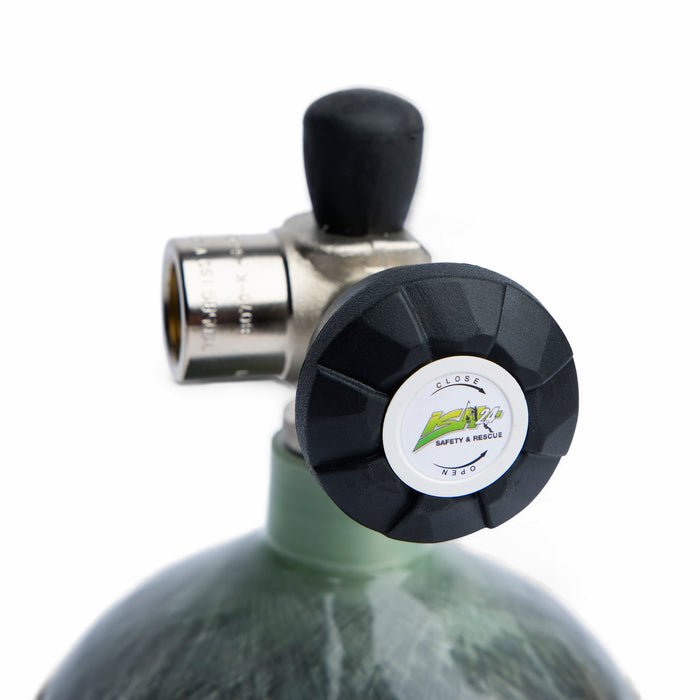

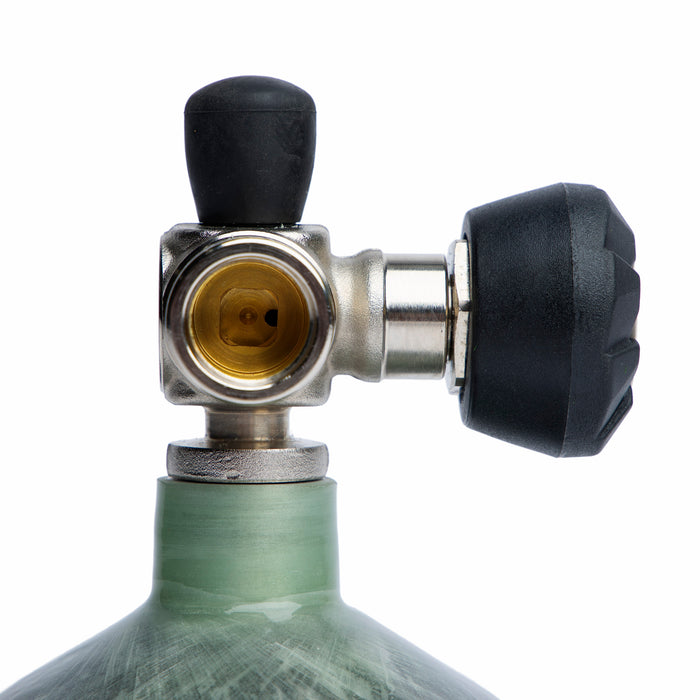

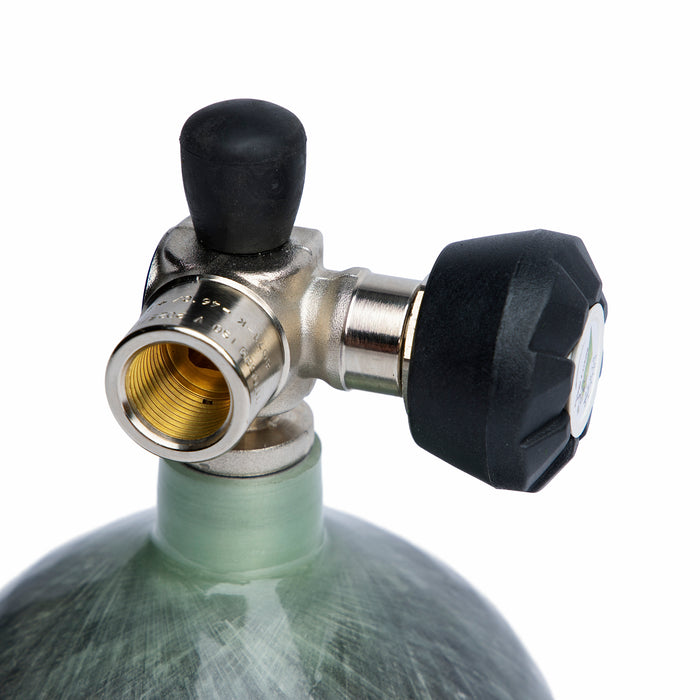

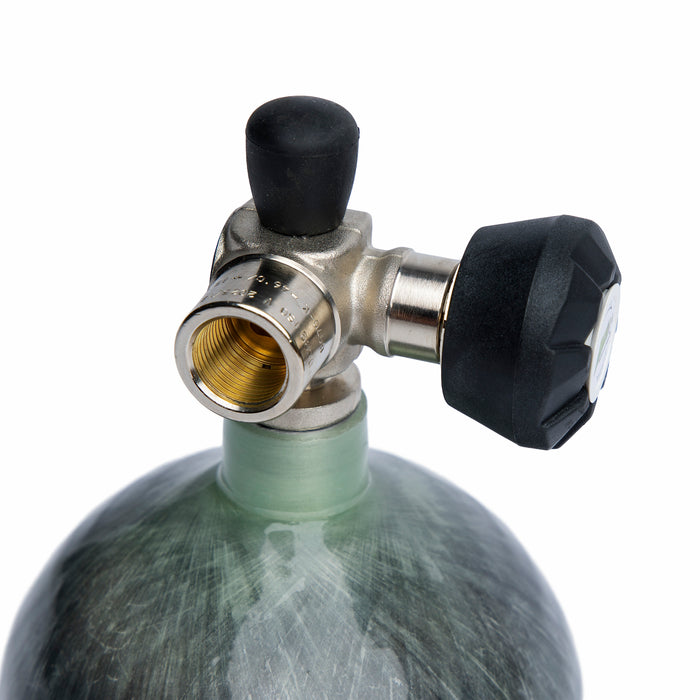

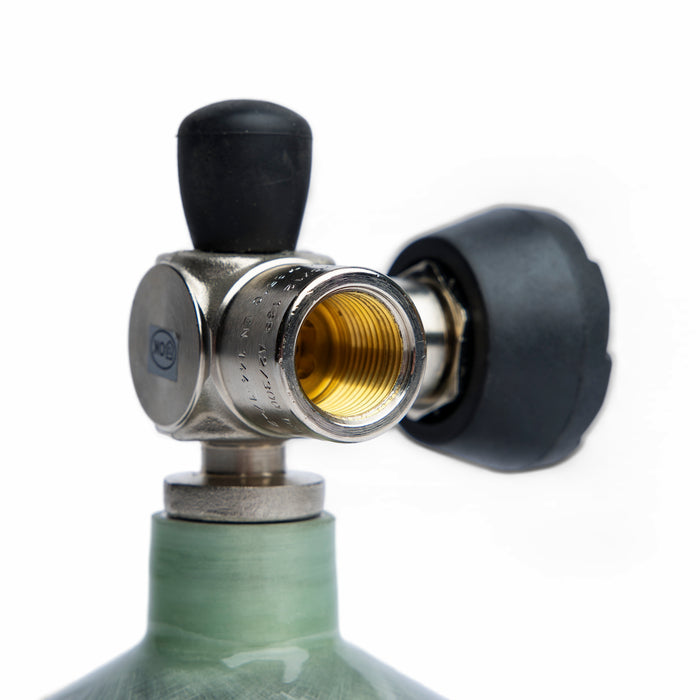

SCBA High Pressure Angle Valve

by ISH24
Original price $126.50 - Original price $150.50
Original price
$126.50 inc GST
$126.50 - $150.50
Current price $126.50 inc GST

The SCBA High Pressure Angle Valve comes with a 90 degree angle and options to make sure that you can choose the right tool for the job ...

Choose a Type

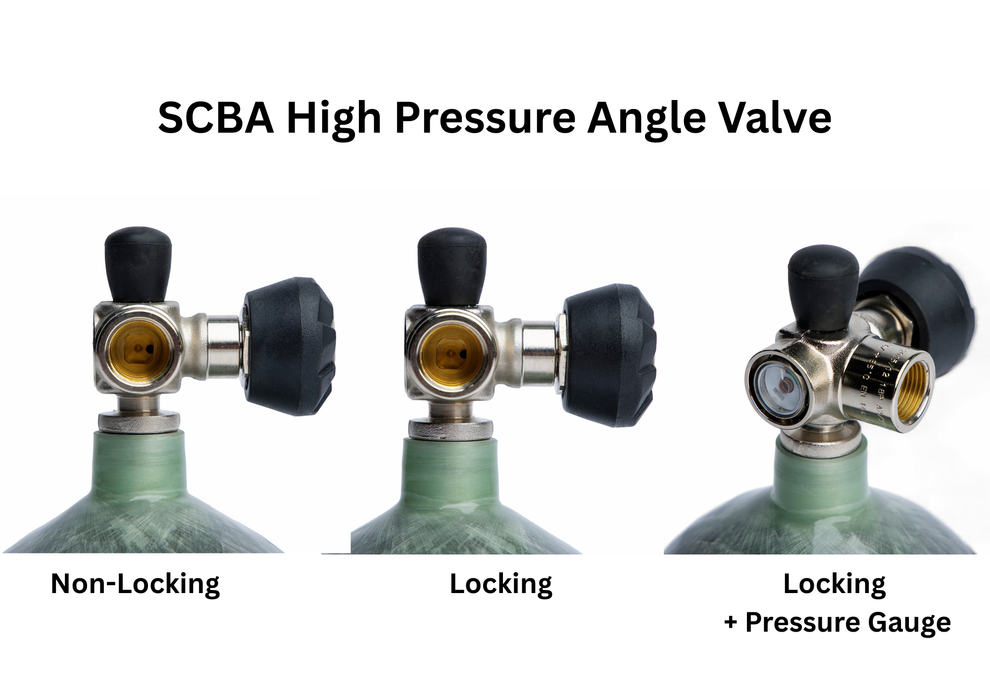

Key Features

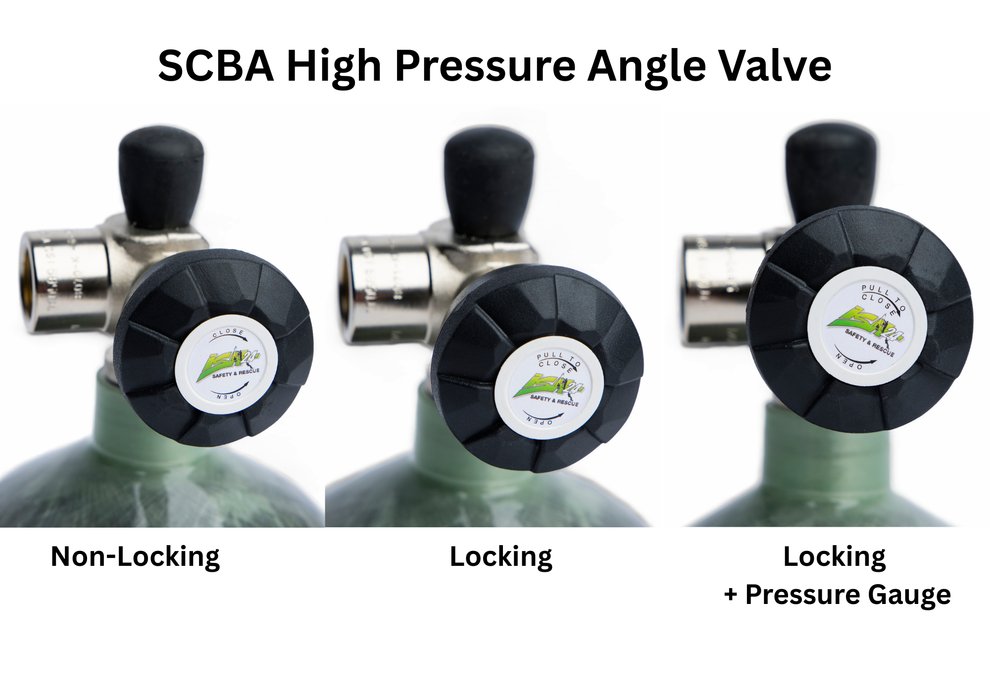

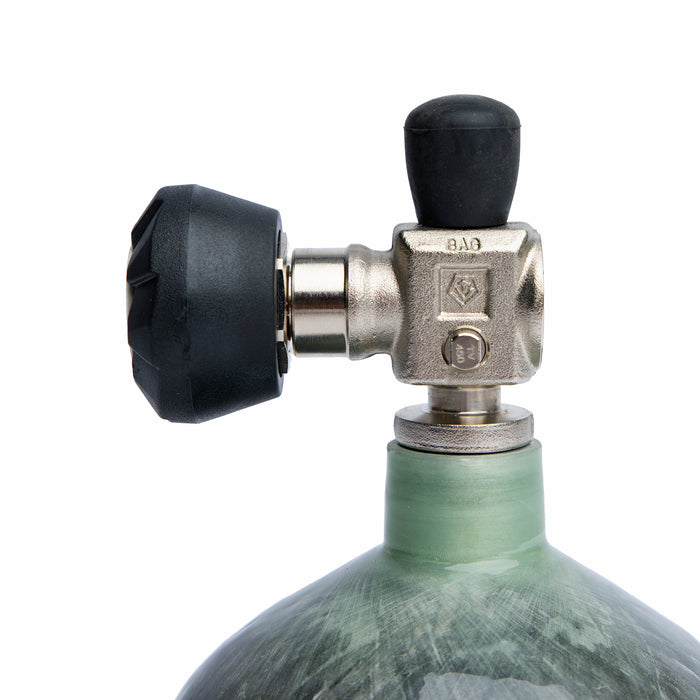

NON-LOCKING 90 ANGLE VALVE

  • Part Number: AVNLNG -B
  • Handwheel: Non-Locking
  • Pressure gauge range: None

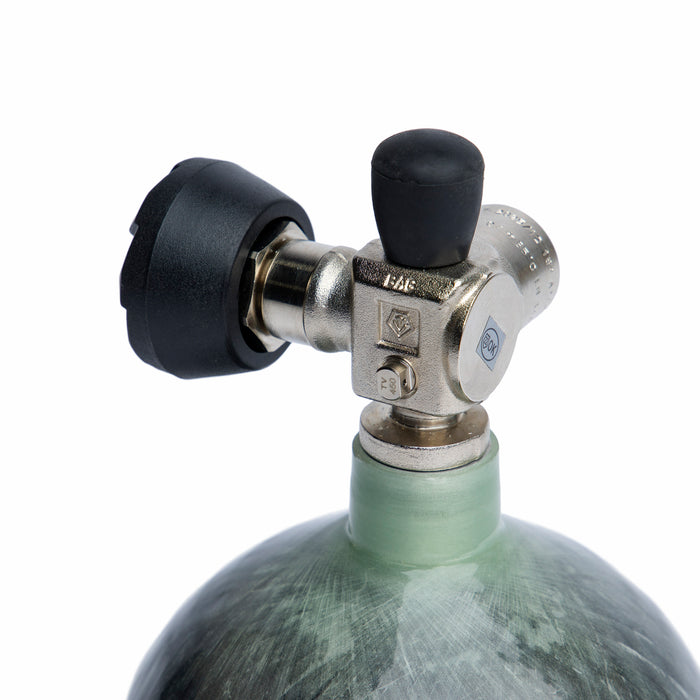

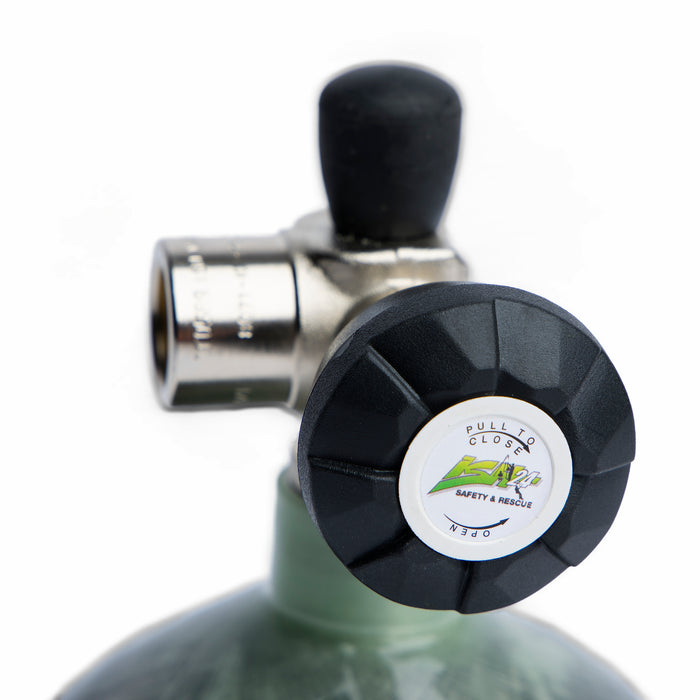

LOCKING 90 ANGLE VALVE

  • Part Number: AVLNG -D
  • Handwheel: Locking
  • Pressure gauge range: None

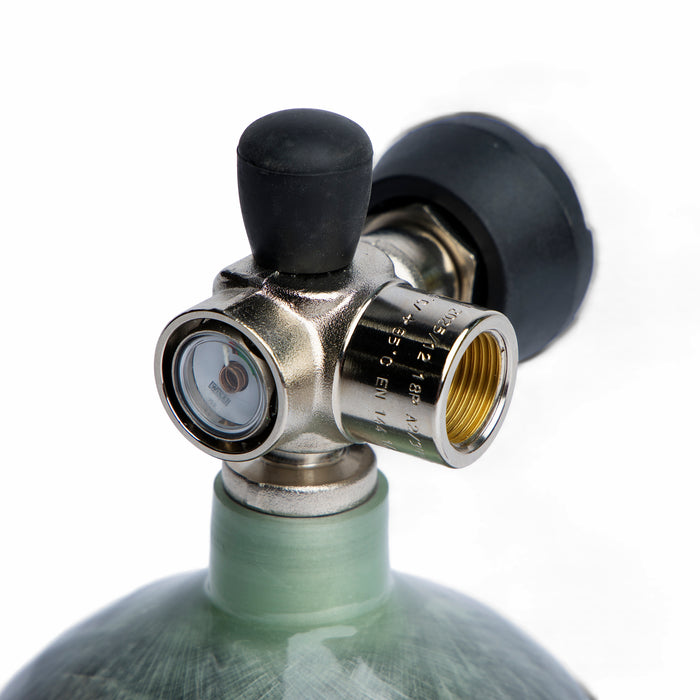

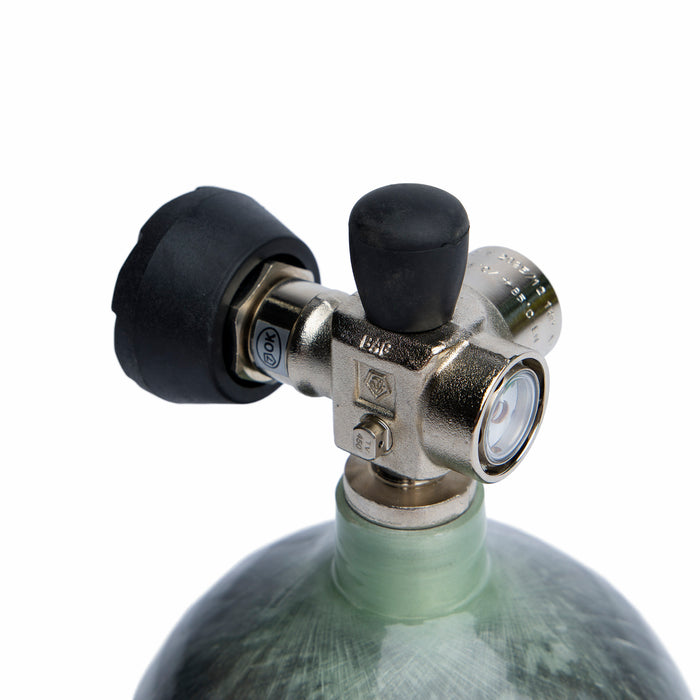

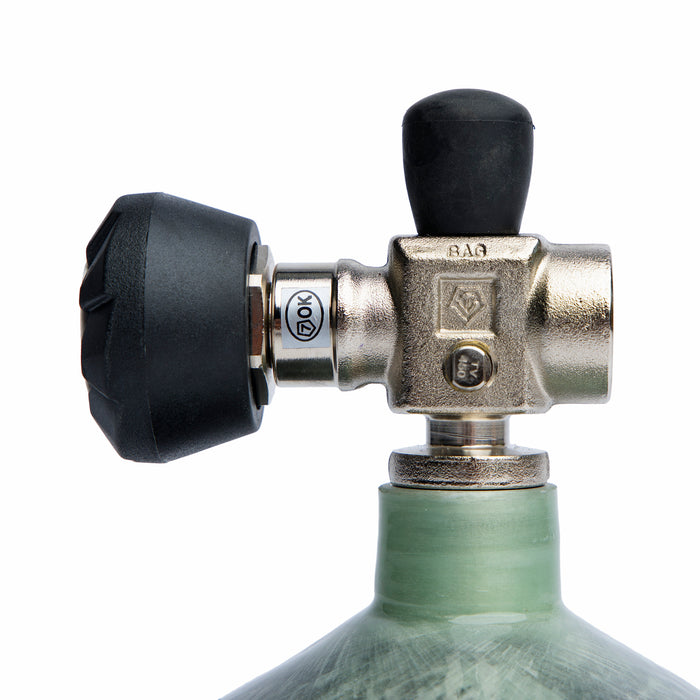

LOCKING 90 ANGLE VALVE + PRESSURE GAUGE

  • Part Number: AVLG -F
  • Handwheel: Locking
  • Pressure gauge range: 0 to 300 bar
Specifications

Type: 90 Angle Valve
Inlet: M18 X 1.5 THREAD
Outlet: DIN 300
Service Pressure: 300 Bar
Burst Disk: 450 Bar

Torque Values

  • Gland nut installation torque: 50 Nm
  • MIN closing torque, Tc: 3Nm
  • PRD installation torque: 9 + 1 Nm
  • Pressure gauge installation torque: 20Nm
  • Gas service : Breathable air

Operating and storage TEMP range: -46 °C to + 85 °C
Compliance: EN ISO 10297:2017, EN 144-1:2018 and EN 144-2:2018
PRD compliance: CGA S-1.1
Plating: Valve body, gland nut and PRD (except inlet, outlet gland nut and PRD THD) shall be nickel chrome plated.

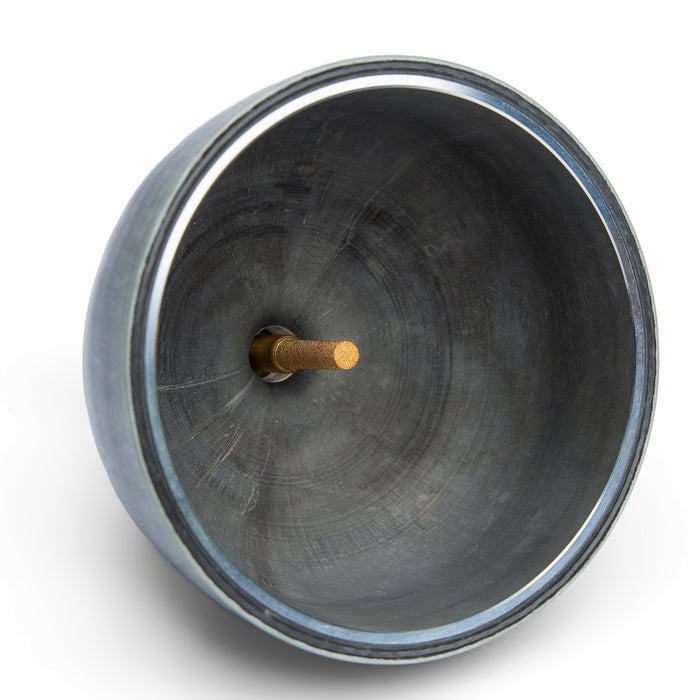

Sintered filter: Dust and moisture
